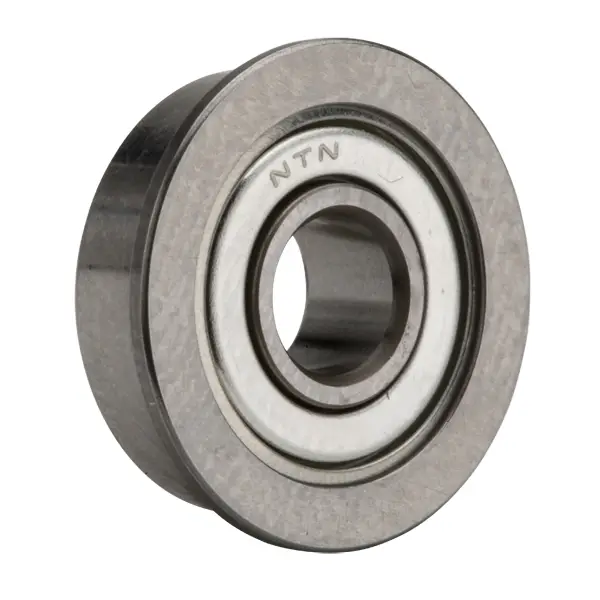

NTN FLW674ASA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
63000 RPM
Limiting Speed - Grease
54000 RPM
Configuration
One
Factor
15.3
Static Load Rating
88 N
Dynamic Load Rating
222 N
Enclosure
Removable Double Shield
Weight
0.350 kg
Operating Temperature Range
-40 to 120 ºC

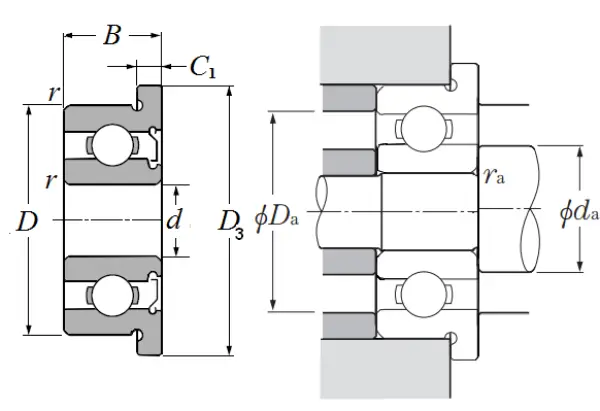

Dimensional Specifications
d
4.000 mm
D
7.000 mm
B
2.500 mm
D3
8.200 mm
C1
0.600 mm
r
0.080 mm
da min
4.600 mm
da max
5.000 mm
Da max
6.400 mm
ras max
0.080 mm
