NTN FLW68/1.5SA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
100000 RPM
Limiting Speed - Grease
88000 RPM
Configuration
One
Factor
13.6
Static Load Rating
29 N
Dynamic Load Rating
102 N
Enclosure
Removable Double Shield
Weight
0.090 kg
Operating Temperature Range
-40 to 120 ºC

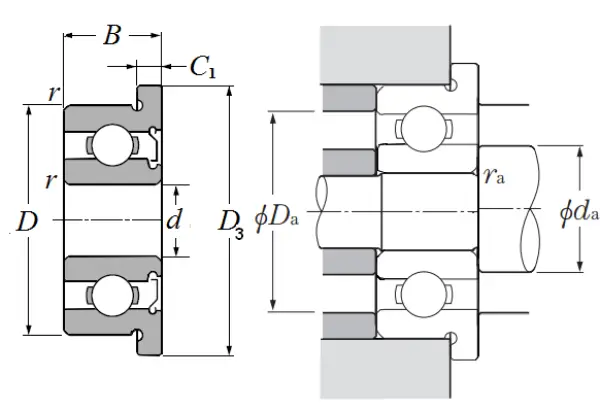

Dimensional Specifications
d
1.500 mm
D
4.000 mm
B
2.000 mm
D3
5.000 mm
C1
0.600 mm
r
0.150 mm
da min
2.300 mm
da max
2.400 mm
Da max
3.200 mm
ras max
0.050 mm
