NTN FLW68/2.5ZA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
76000 RPM
Limiting Speed - Grease
65000 RPM
Configuration
One
Factor
14.2
Static Load Rating
73 N
Dynamic Load Rating
209 N
Enclosure
Removable Double Shield
Weight
0.260 kg
Operating Temperature Range
-40 to 120 ºC

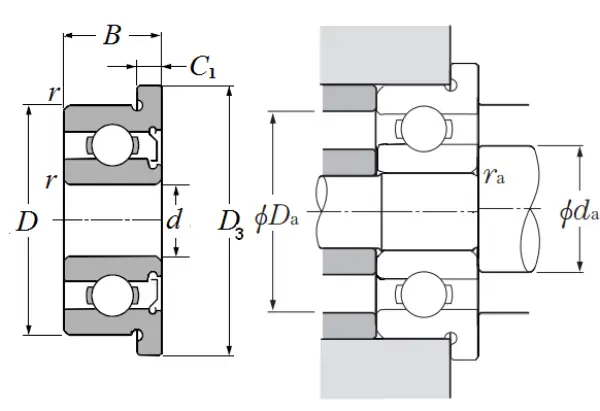

Dimensional Specifications
d
2.500 mm
D
7.000 mm
B
2.600 mm
D3
7.900 mm
C1
0.800 mm
r
0.080 mm
da min
3.100 mm
da max
3.600 mm
Da max
4.800 mm
ras max
0.080 mm
