NTN FLW684AX50Z
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
57000 RPM
Limiting Speed - Grease
49000 RPM
Configuration
One
Factor
12.7
Static Load Rating
224 N
Dynamic Load Rating
640 N
Enclosure
Single Shielded
Weight
1.000 kg
Operating Temperature Range
-40 to 120 ºC

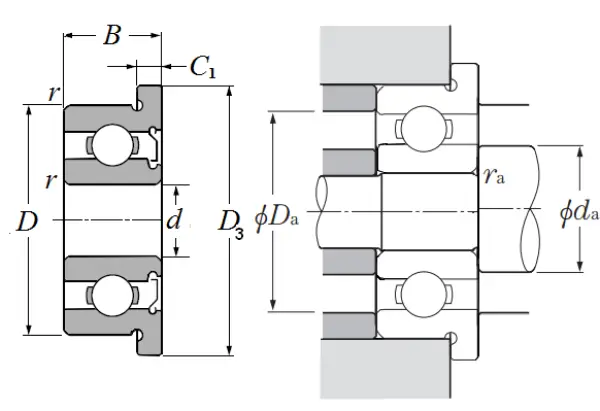

Dimensional Specifications
d
4.000 mm
D
9.000 mm
B
4.000 mm
D3
10.300 mm
C1
1.000 mm
r
0.150 mm
da min
4.200 mm
da max
5.000 mm
Da max
7.800 mm
ras max
0.150 mm
