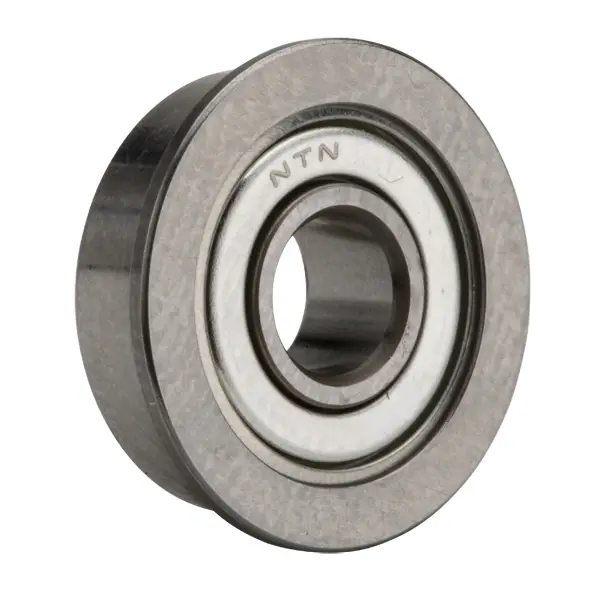

NTN FLW687AZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
44000 RPM
Limiting Speed - Grease
37000 RPM
Configuration
One
Factor
14.0
Static Load Rating
510 N
Dynamic Load Rating
1170 N
Enclosure
Single Shielded
Weight
2.400 kg
Operating Temperature Range
-40 to 120 ºC

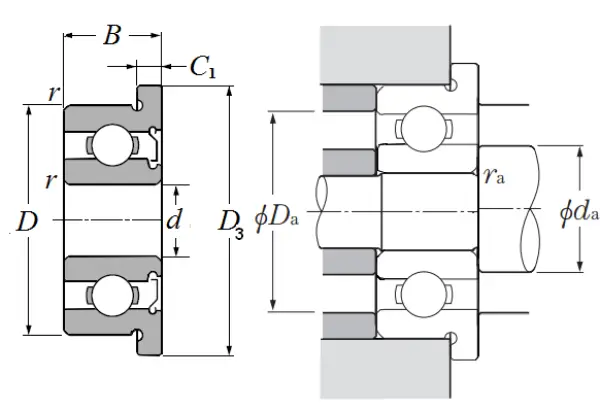

Dimensional Specifications
d
7.000 mm
D
14.000 mm
B
5.000 mm
D3
16.000 mm
C1
1.100 mm
r
0.150 mm
da min
8.200 mm
da max
8.700 mm
Da max
12.800 mm
ras max
0.150 mm
