NTN FLW69/1.5ASA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
93000 RPM
Limiting Speed - Grease
79000 RPM
Configuration
One
Factor
13.3
Static Load Rating
51 N
Dynamic Load Rating
171 N
Enclosure
Removable Double Shield
Weight
0.240 kg
Operating Temperature Range
-40 to 120 ºC

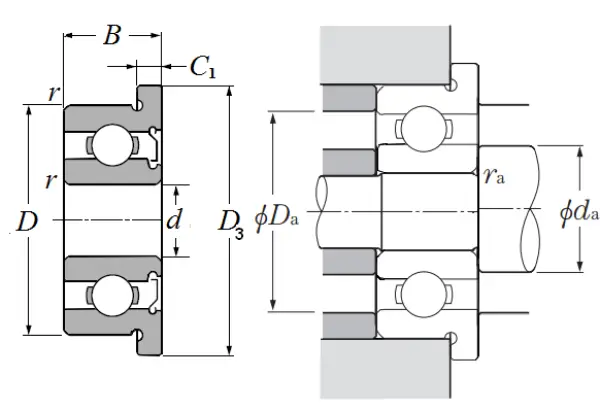

Dimensional Specifications
d
1.500 mm
D
5.000 mm
B
2.600 mm
D3
6.500 mm
C1
0.800 mm
r
0.150 mm
da min
2.700 mm
da max
2.900 mm
Da max
3.800 mm
ras max
0.150 mm
