NTN FLW69/2.5SA
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
70000 RPM
Limiting Speed - Grease
59000 RPM
Configuration
One
Factor
13.8
Static Load Rating
96 N
Dynamic Load Rating
284 N
Enclosure
Removable Double Shield
Weight
0.670 kg
Operating Temperature Range
-40 to 120 ºC

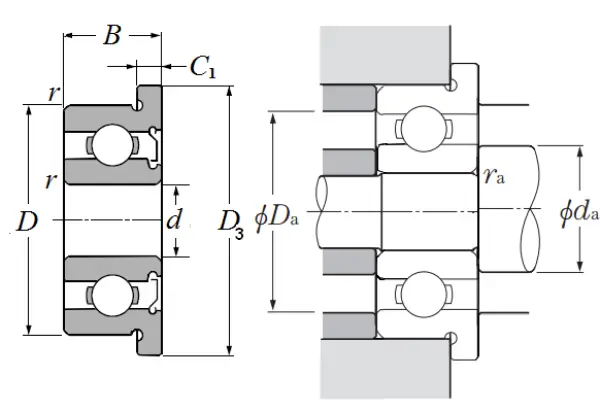

Dimensional Specifications
d
2.500 mm
D
7.000 mm
B
3.500 mm
D3
8.500 mm
C1
0.900 mm
r
0.150 mm
da min
3.700 mm
da max
4.000 mm
Da max
5.800 mm
ras max
0.150 mm
