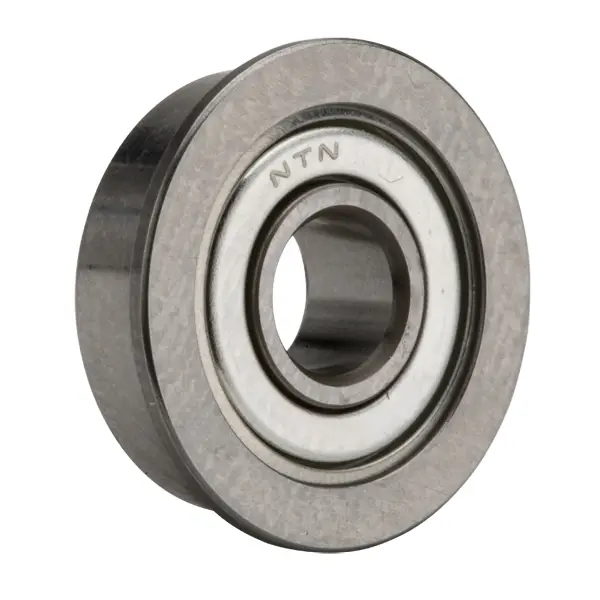

NTN FLW693Z
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Outside Ring Type
Flanged
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
63000 RPM
Limiting Speed - Grease
54000 RPM
Configuration
One
Factor
11.9
Static Load Rating
180 N
Dynamic Load Rating
560 N
Enclosure
Single Shielded
Weight
0.720 kg
Operating Temperature Range
-40 to 120 ºC

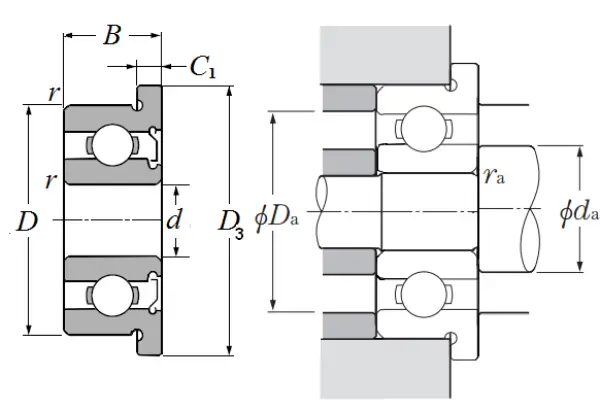

Dimensional Specifications
d
3.000 mm
D
8.000 mm
B
4.000 mm
D3
9.500 mm
C1
0.900 mm
r
0.150 mm
da min
4.200 mm
da max
4.400 mm
Da max
6.800 mm
ras max
0.150 mm
