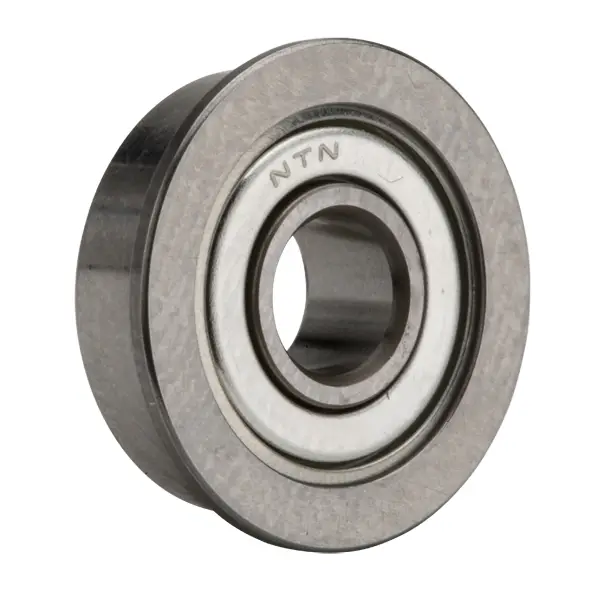

NTN FLWA675ZZ
Single Row Radial Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Miniature / Extra Small Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
49000 RPM
Precision
Class 0
Configuration
One
Factor
15.8
Radial Internal Clearance
CN
Static Load Rating
91 N
Dynamic Load Rating
217 N
Enclosure
Double Shielded
Operating Temperature Range
-40 to 120 ºC

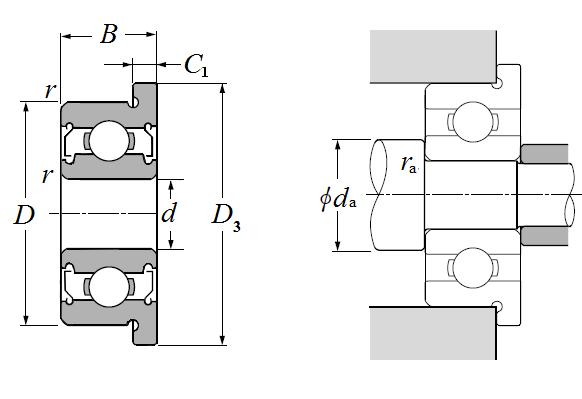

Dimensional Specifications
d
5.000 mm
D
8.000 mm
B
2.500 mm
D3
9.200 mm
C1
0.600 mm
r
0.080 mm
da min
4.200 mm
da max
5.000 mm
Da max
7.800 mm
ras max
0.150 mm
