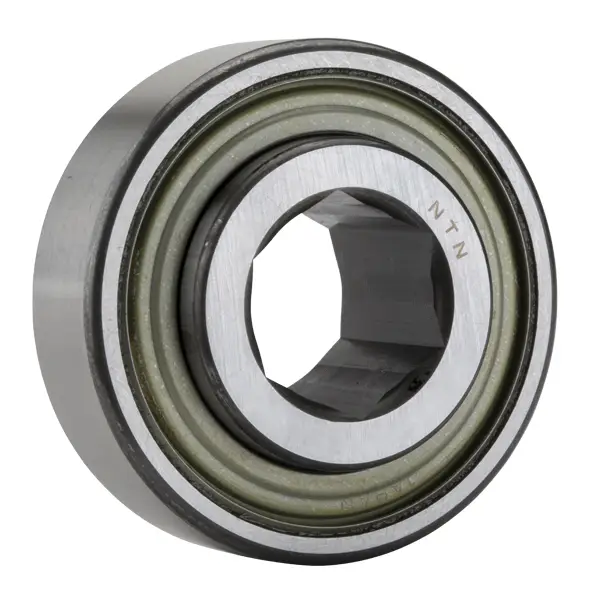

NTN HPC014GP
Farm Implement Bearings - Hex Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearings
Bore Type
Hex
Outside Ring Type
Cylindrical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Configuration
One
Clearance
CN
Static Load Rating
7850 N
Dynamic Load Rating
14000 N
Enclosure
Double Sealed
Weight
0.163 kg
Operating Temperature Range
-40 to 120 ºC

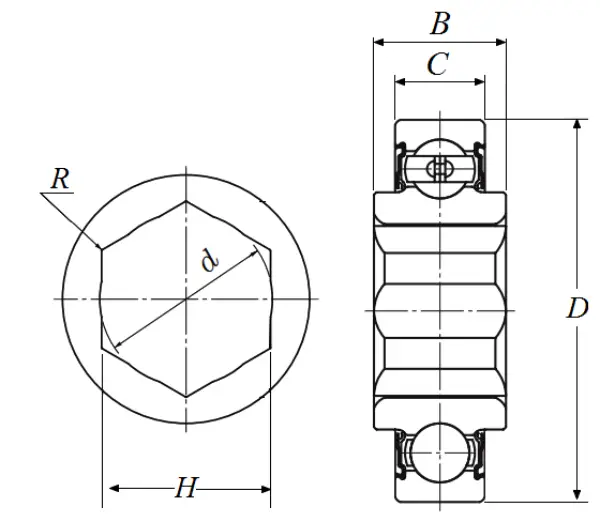

Dimensional Specifications
H (0.0050/0)
22.250 mm
D
52.000 mm
C (0/-0.0047)
15.000 mm
B (0/-0.0047)
25.400 mm
d
22.800 mm
R
1.000 mm
Shaft Size
22.225 mm
