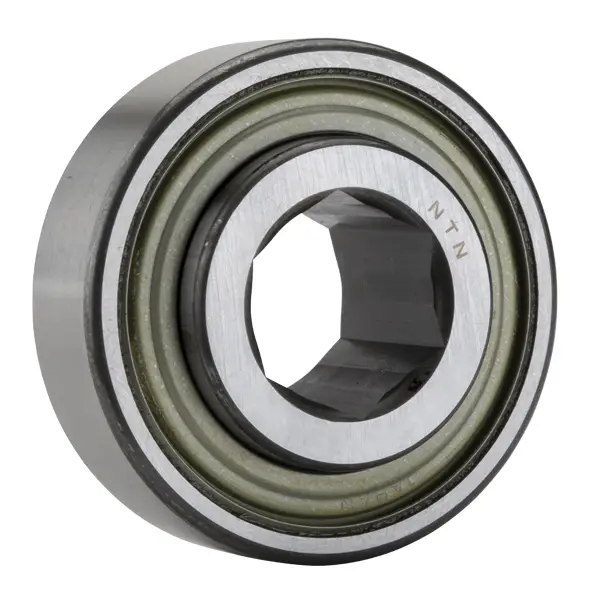

NTN HPC100GP
Farm Implement Bearings - Hex Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearings
Bore Type
Hex
Outside Ring Type
Cylindrical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Configuration
One
Lubrication
No
Clearance
CN
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
1.230 kg
Operating Temperature Range
-40 to 120 ºC

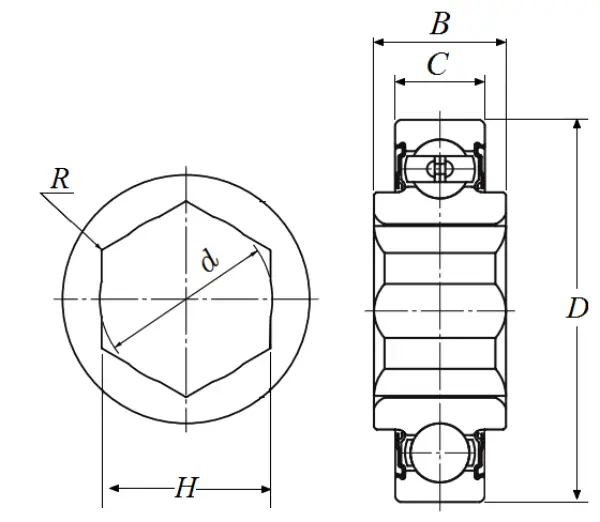

Dimensional Specifications
H (0.0050/0)
25.425 mm
D
62.000 mm
C (0/-0.0047)
16.000 mm
B (0/-0.0047)
24.000 mm
d
26.1 mm
R
1.000 mm
Shaft Size
25.4 mm
Specifications
Ball Material
Through Hardened
Lubrication
No
Radial Dynamic Load Rating
19500 N
Radial Static Load Rating
11300 N
