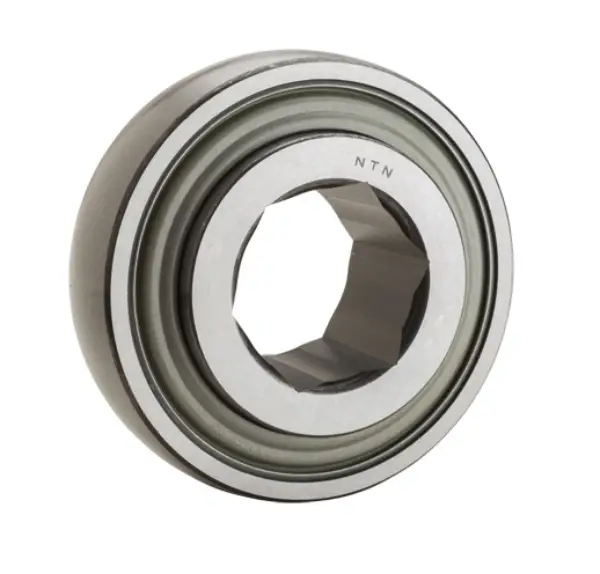

NTN HPS103GP2
Farm Implement Bearings - Hex Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Hex
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Configuration
One
Lubrication
No
Clearance
C3
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
2.160 kg
Operating Temperature Range
-40 to 120 ºC

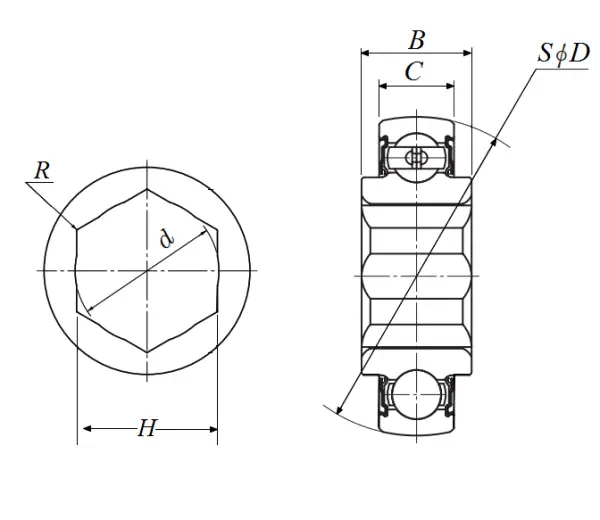

Dimensional Specifications
H (0.0050/0)
31.780 mm
D
72.000 mm
C (0/-0.0047)
17.000 mm
B (0/-0.0047)
37.700 mm
d
32.5 mm
R
0.250 mm
Shaft Size
31.75 mm
Specifications
Ball Material
Through Hardened
Lubrication
No
Radial Dynamic Load Rating
25700 N
Radial Static Load Rating
15300 N
