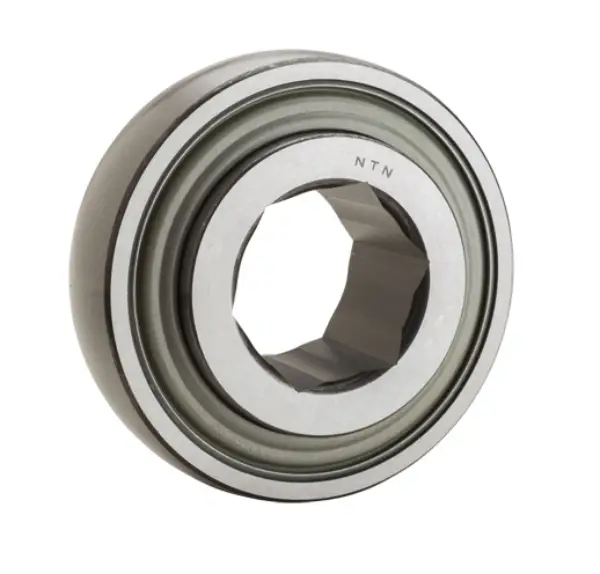

NTN HPS108GPB
Farm Implement Bearings - Hex Bore
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Heavy Duty Disc Bearing
Bore Type
Hex
Outside Ring Type
Spherical
Material
Through Hardened Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Precision Rating
ISO Class 0
Configuration
One
Lubrication
Relubricatable
Clearance
C3
Static Load Rating
23200 N
Dynamic Load Rating
35000 N
Enclosure
Double Sealed
Weight
0.720 kg
Operating Temperature Range
-40 to 120 ºC

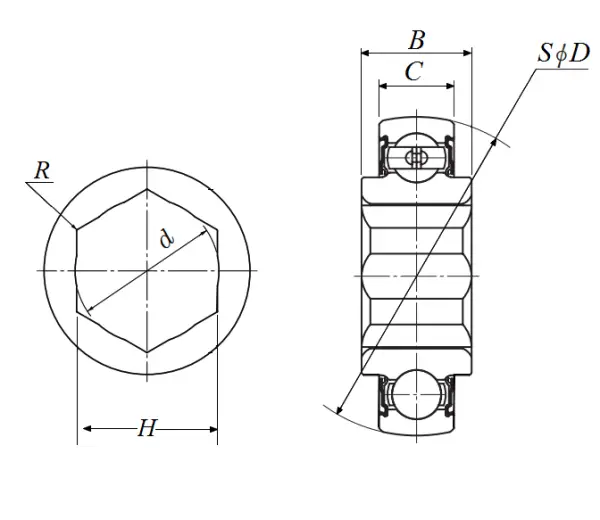

Dimensional Specifications
H (0.0050/0)
43.955 mm
D
90.000 mm
C (0/-0.0047)
22.000 mm
B (0/-0.0047)
30.000 mm
d
39 mm
R
0.250 mm
Shaft Size
31.75 mm
