NTN JEL206-104D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL206-104
Lubrication
Outer Ring
Collar Number
C-104#BCA
Basic Outer Ring
206
Radial Internal Clearance
CN
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
1.610 kg
Operating Temperature Range
-40 to 120 ºC

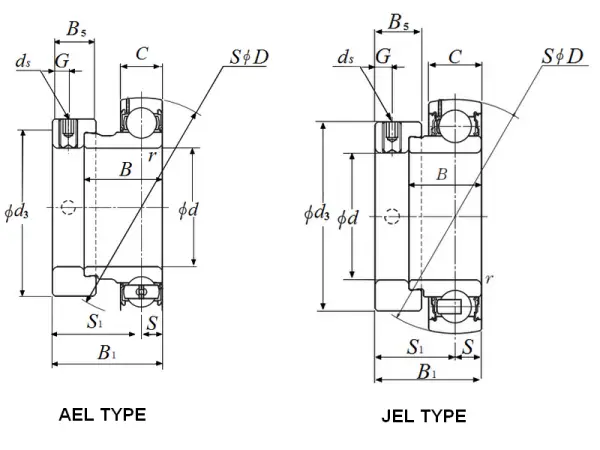

Dimensional Specifications
d
31.750 mm
D
62.000 mm
C
18.000 mm
B
23.800 mm
B1
35.700 mm
r
1.000 mm
ds
5/16-24 UNF
G
6.000 mm
d3
44.500 mm
B5
15.900 mm
S1
26.700 mm
S
9.000 mm
F
4.1 mm
Specifications
Radial Dynamic Load Rating
19500 N
Lubrication
Outer Ring
Radial Static Load Rating
11300 N
