NTN JELS203-011
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL203-011
Basic Outer Ring
203
Static Load Rating
4600 N
Dynamic Load Rating
9600 N
Enclosure
Double Sealed
Weight
0.100 kg
Operating Temperature Range
-40 to 120 ºC

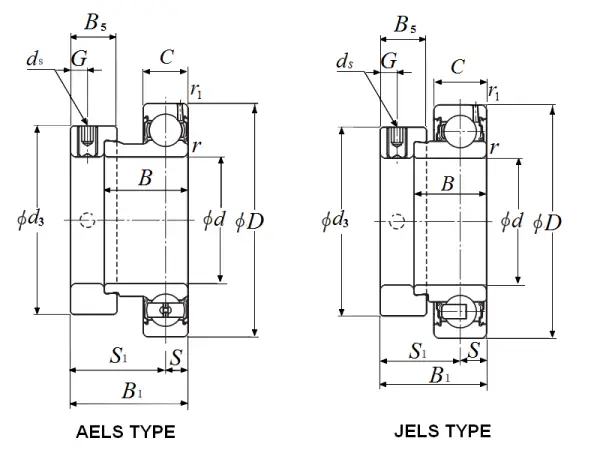

Dimensional Specifications
d
17.463 mm
D
40.000 mm
C
13.000 mm
B
19.000 mm
B1
28.600 mm
r
0.600 mm
ds
1/4-28 UNF
G
4.800 mm
d3
29.000 mm
B5
13.600 mm
S1
22.100 mm
S
6.500 mm
r1
0.400 mm
