NTN JELS204-012
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL204-012
Basic Outer Ring
204
Static Load Rating
6650 N
Dynamic Load Rating
12800 N
Enclosure
Double Sealed
Weight
0.191 kg
Operating Temperature Range
-40 to 120 ºC

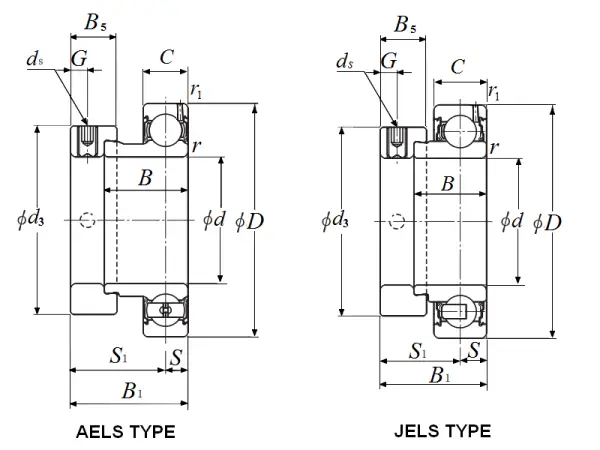

Dimensional Specifications
d
19.050 mm
D
47.000 mm
C
15.000 mm
B
21.500 mm
B1
31.000 mm
r
1.000 mm
ds
1/4-28 UNF
G
4.800 mm
d3
33.000 mm
B5
13.500 mm
S1
23.500 mm
S
7.500 mm
r1
0.600 mm
