NTN JELS207-105
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL207-105
Basic Outer Ring
207
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
0.562 kg
Operating Temperature Range
-40 to 120 ºC

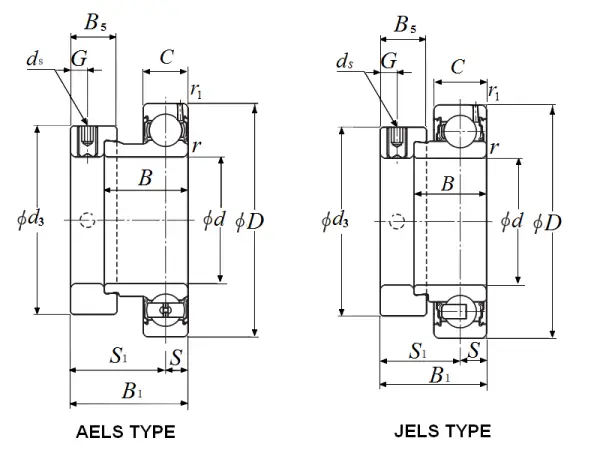

Dimensional Specifications
d
33.338 mm
D
72.000 mm
C
19.000 mm
B
25.400 mm
B1
38.900 mm
r
1.500 mm
ds
3/8-24 UNF
G
6.800 mm
d3
55.500 mm
B5
17.500 mm
S1
29.400 mm
S
9.500 mm
r1
1.500 mm
