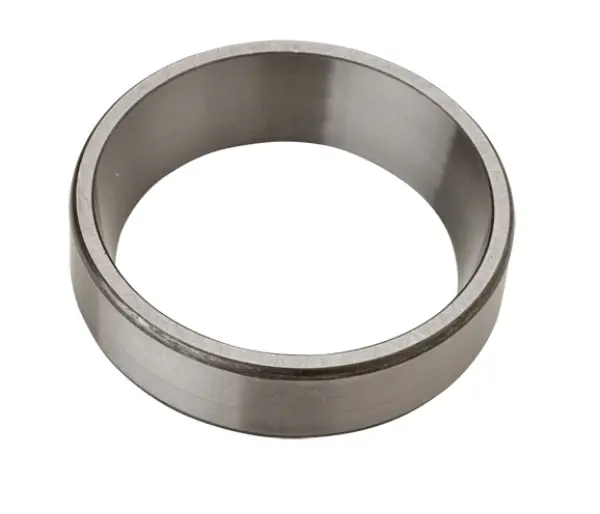

NTN JH211710
Cup for Tapered Roller Bearing - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Bearing Cup
Material
Case Carburized Steel
Weight
0.624 kg

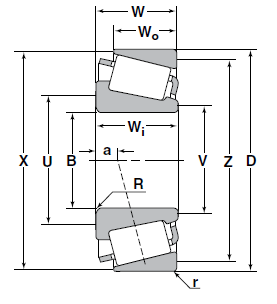

Dimensional Specifications
D
120.000 mm
Wo
32.000 mm
W
39.000 mm
r
2.500 mm
X
114.0 mm
Z
107.0 mm
