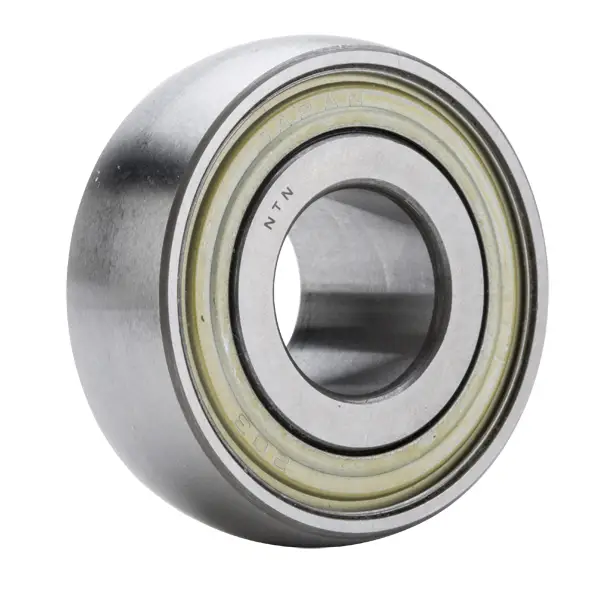

NTN JL204-012C3
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
6700 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Lubrication
No
Basic Outer Ring
204
Radial Internal Clearance
CN
Static Load Rating
6650 N
Dynamic Load Rating
12800 N
Enclosure
Double Sealed
Weight
0.820 kg
Operating Temperature Range
-40 to 120 ºC

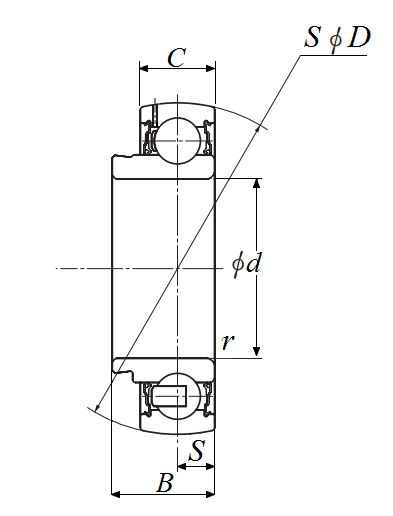

Dimensional Specifications
d
19.050 mm
D
47.000 mm
C
15.000 mm
B
21.500 mm
B1
31.000 mm
r
0.000 mm
S
0 mm
Specifications
Radial Dynamic Load Rating
12800 N
Lubrication
No
Radial Static Load Rating
6650 N
