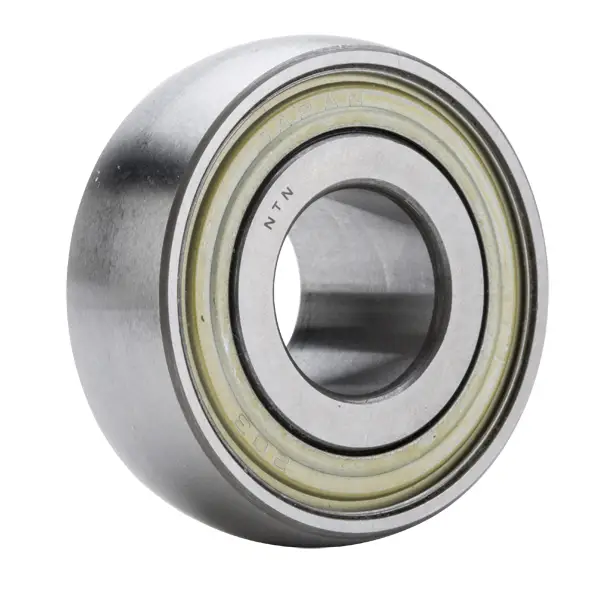

NTN JL208C3
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3700 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Lubrication
No
Basic Outer Ring
208
Radial Internal Clearance
C3
Static Load Rating
17800 N
Dynamic Load Rating
29100 N
Enclosure
Double Sealed
Weight
2.240 kg
Operating Temperature Range
-40 to 120 ºC

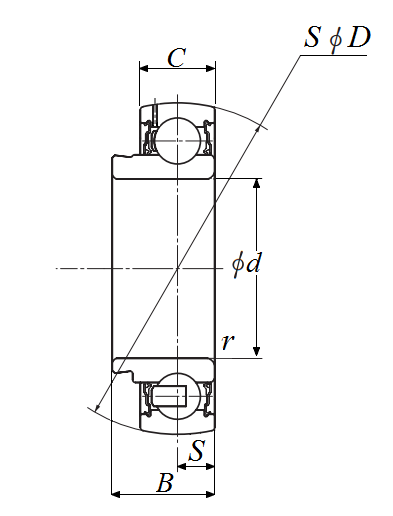

Dimensional Specifications
d
40.000 mm
D
80.000 mm
C
22.000 mm
B
30.200 mm
B1
43.700 mm
r
1.500 mm
S
11.000 mm
Specifications
Radial Dynamic Load Rating
29100 N
Lubrication
No
Radial Static Load Rating
17800 N
