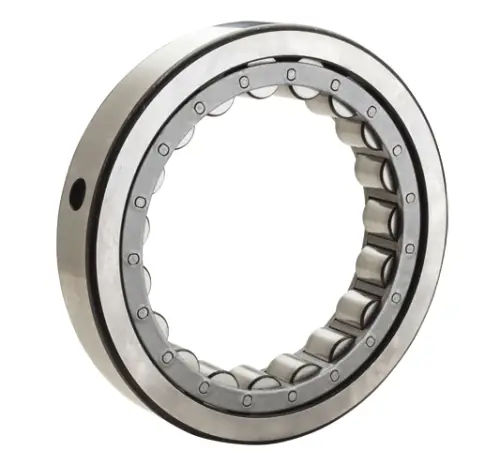

NTN M1010EAHL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
54000 N
Dynamic Load Rating
42500 N
Enclosure
Open
Weight
0.219 kg
Operating Temperature Range
-40 to 120 ºC

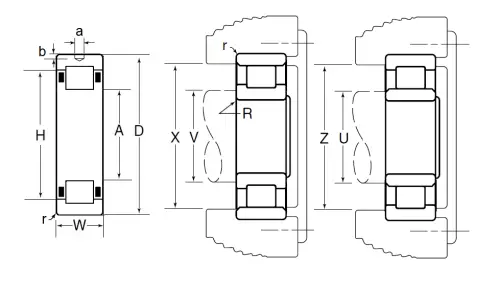

Dimensional Specifications
A
57.890 mm
D
80.035 mm
W
16.000 mm
r
1.020 mm
H
69.620 mm
a
7.140 mm
b
1.520 mm
U (Plain Rings)
56.100 mm
V (Rib Rings)
57.700 mm
X (Plain Rings)
74.400 mm
Z (Rib Rings)
72.100 mm
