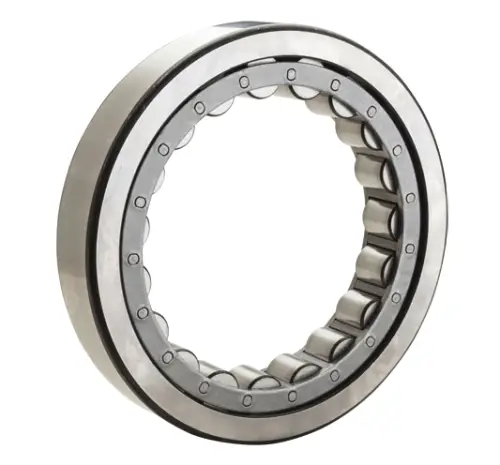

NTN M1024UX
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
284000 N
Dynamic Load Rating
184000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

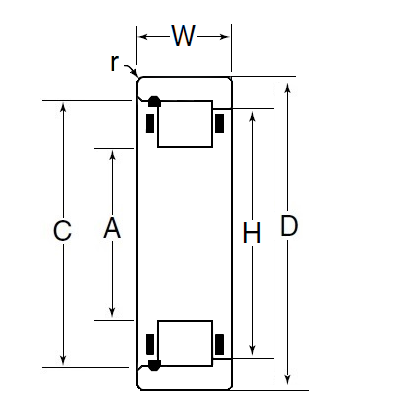

Dimensional Specifications
A
135.360 mm
D
180.000 mm
C
158.900 mm
W
28.000 mm
r
2.030 mm
H
158.900 mm
