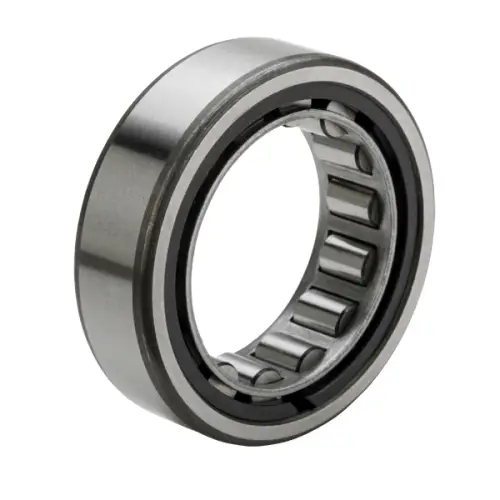

NTN M1209TV
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
66500 N
Dynamic Load Rating
59000 N
Enclosure
Open
Weight
0.336 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
A
55.520 mm
D
85.000 mm
C
71.810 mm
W
19.000 mm
r
1.020 mm
