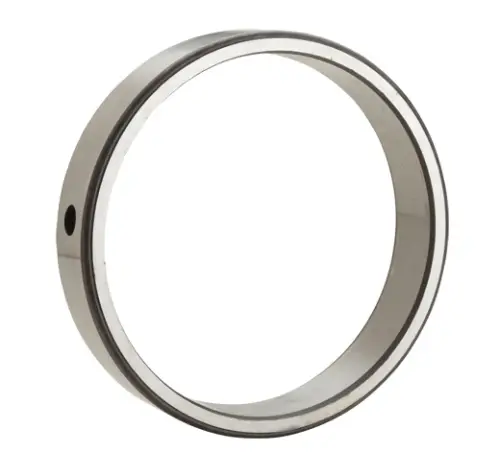

NTN M1211CH

Outer Ring for Cylindrical Roller Bearings

(BRAND):NTN
(Availability):In Stock

Technical Specifications

Type Outer Ring
Material Hardened Alloy Steel
Weight 0.277 kg

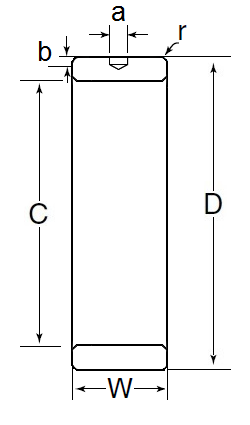

Dimensional Specifications

D 100.000 mm
C 88.010 mm
W 21.000 mm
r 1.520 mm
a 7.920 mm
b 2.790 mm
