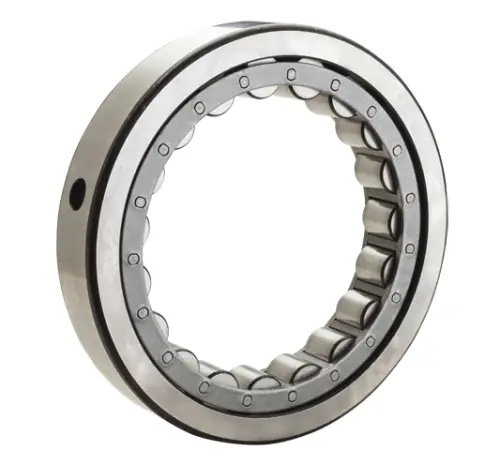

NTN M1212EAHL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
95500 N
Dynamic Load Rating
78000 N
Enclosure
Open
Weight
0.708 kg
Operating Temperature Range
-40 to 120 ºC

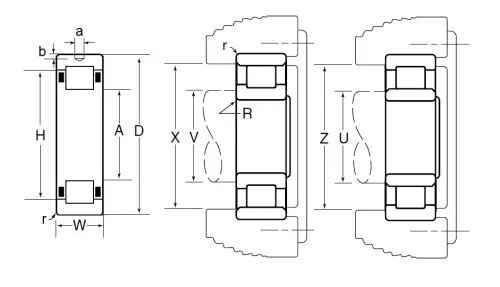

Dimensional Specifications
A
72.390 mm
D
110.056 mm
W
22.000 mm
r
1.520 mm
H
93.500 mm
a
7.920 mm
b
2.790 mm
U (Plain Rings)
69.300 mm
V (Rib Rings)
72.400 mm
X (Plain Rings)
101.300 mm
Z (Rib Rings)
97.500 mm
