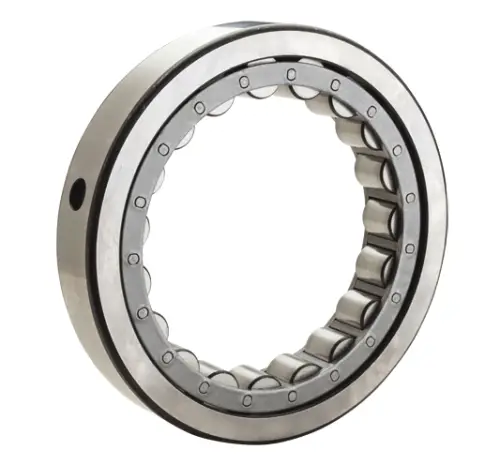

NTN M1213EAHL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
135000 N
Dynamic Load Rating
108000 N
Enclosure
Open
Weight
0.871 kg
Operating Temperature Range
-40 to 120 ºC

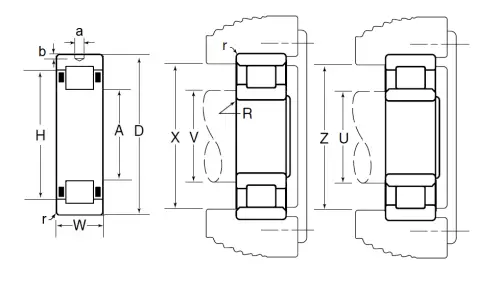

Dimensional Specifications
A
80.420 mm
D
120.056 mm
W
23.000 mm
r
1.520 mm
H
101.240 mm
a
7.920 mm
b
2.790 mm
U (Plain Rings)
77.000 mm
V (Rib Rings)
80.300 mm
X (Plain Rings)
110.000 mm
Z (Rib Rings)
105.700 mm
