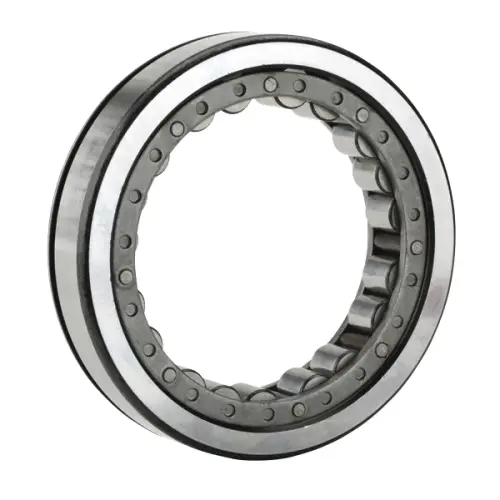

NTN M1213GEAL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
135000 N
Dynamic Load Rating
108000 N
Enclosure
Open
Weight
0.853 kg
Operating Temperature Range
-40 to 120 ºC

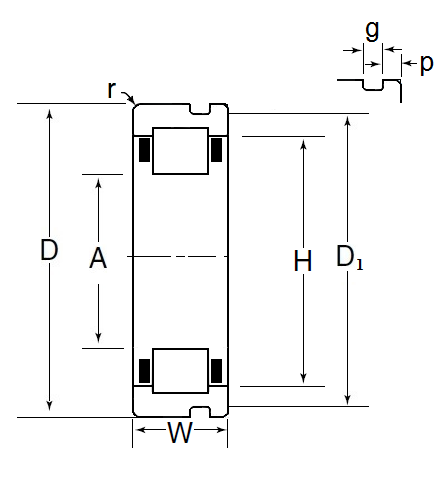

Dimensional Specifications
A
80.420 mm
D
120.000 mm
C
101.240 mm
W
23.000 mm
r
1.520 mm
D1
115.210 mm
p
3.180 mm
g
3.960 mm
