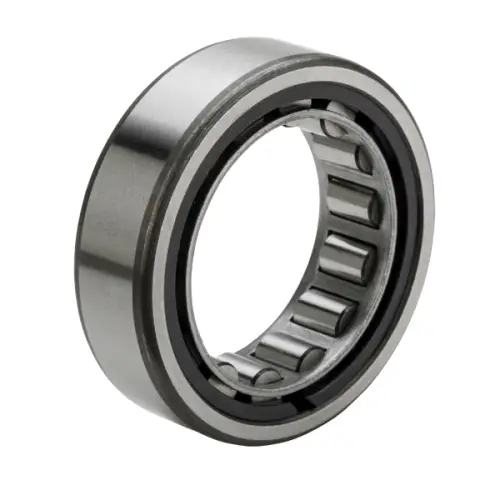

NTN M1215THV
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
151000 N
Dynamic Load Rating
118000 N
Enclosure
Open
Weight
0.969 kg
Operating Temperature Range
-40 to 120 ºC

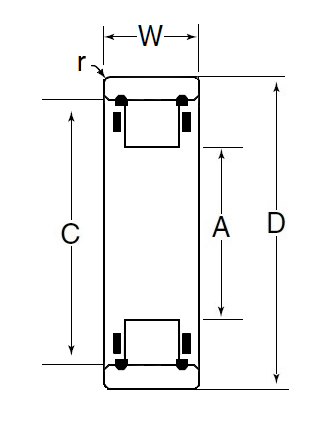

Dimensional Specifications
A
89.030 mm
D
130.000 mm
C
111.250 mm
W
25.000 mm
r
1.520 mm
