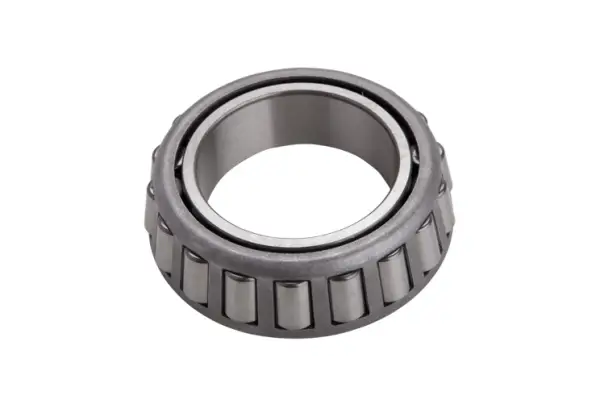

NTN M12649
Cone for Tapered Roller Bearing - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cone
Bore Type
Round
Material
Case Carburized Steel
Static Load Rating
39000 N
Dynamic Load Rating
38000 N
Weight
0.109 kg
Operating Temperature Range
-40 to 120 ºC
Y2 (Axial Load Factor)
2.16
e (Axial Load Factor)
0.28
Dimensional Specifications
B
21.430 mm
Wi
18.288 mm
R
1.300 mm
U
29.0 mm
V
25.5 mm
a (Effective Load Center)
-6.400 mm
