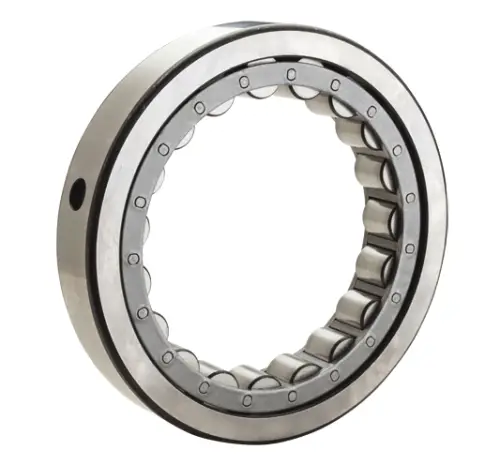

NTN M1307EAHL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
74500 N
Dynamic Load Rating
69000 N
Enclosure
Open
Weight
0.418 kg
Operating Temperature Range
-40 to 120 ºC

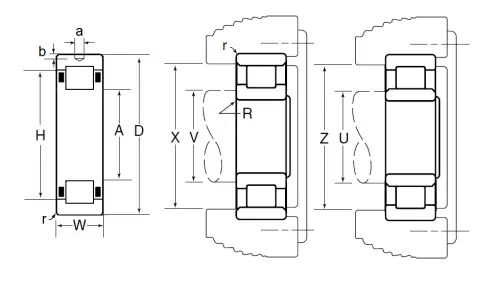

Dimensional Specifications
A
46.840 mm
D
80.035 mm
W
21.000 mm
r
1.520 mm
H
64.470 mm
a
7.920 mm
b
2.790 mm
U (Plain Rings)
43.700 mm
V (Rib Rings)
46.700 mm
X (Plain Rings)
71.400 mm
Z (Rib Rings)
67.800 mm
