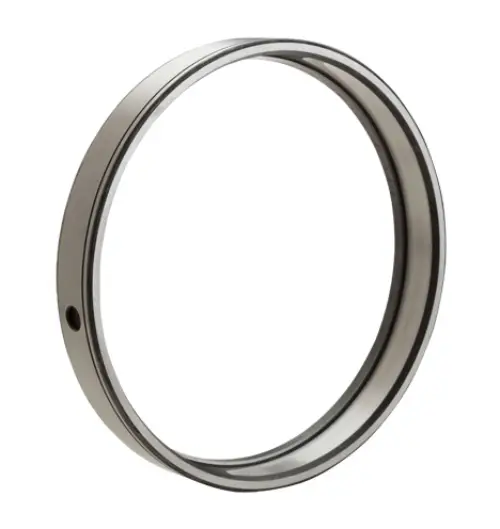

NTN M1309SH

Outer Ring for Cylindrical Roller Bearings

(BRAND):NTN
(Availability):In Stock

Technical Specifications

Type Outer Ring
Material Hardened Alloy Steel
Weight 0.345 kg

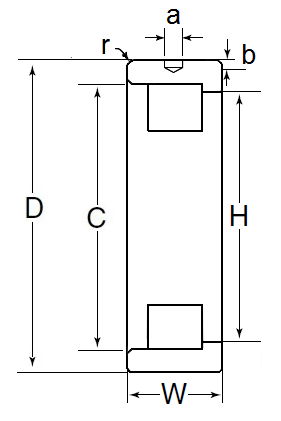

Dimensional Specifications

D 100.000 mm
C 86.110 mm
W 25.000 mm
r 1.520 mm
H 81.480 mm
a 7.920 mm
b 2.790 mm
