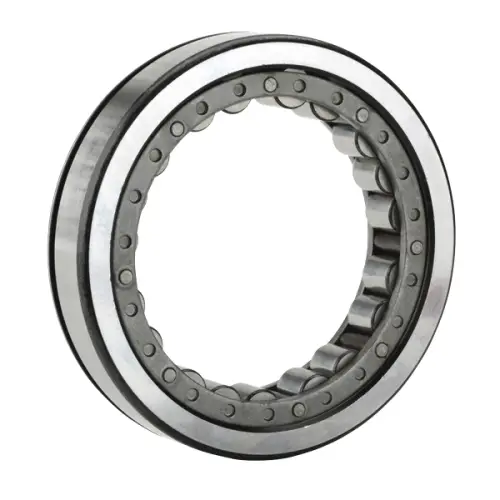

NTN M1312GEAL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
195000 N
Dynamic Load Rating
168000 N
Enclosure
Open
Weight
1.555 kg
Operating Temperature Range
-40 to 120 ºC

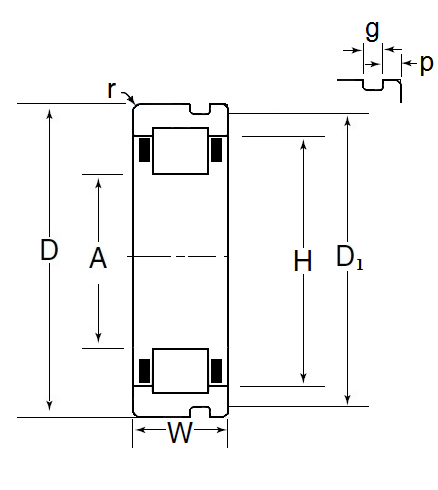

Dimensional Specifications
A
77.550 mm
D
130.000 mm
C
106.350 mm
W
31.000 mm
r
2.030 mm
D1
125.220 mm
p
3.180 mm
g
3.960 mm
