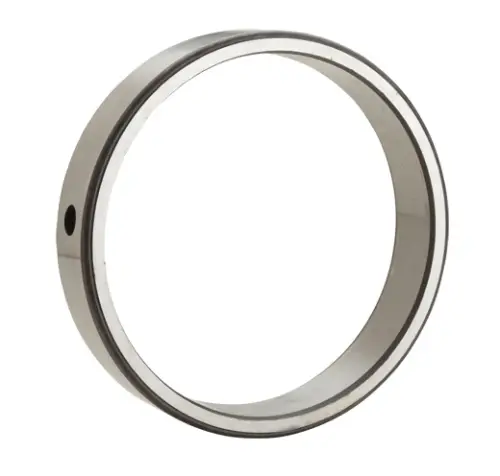

NTN M1313CHW
Outer Ring for Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring
Material
Hardened Alloy Steel
Weight
1.116 kg

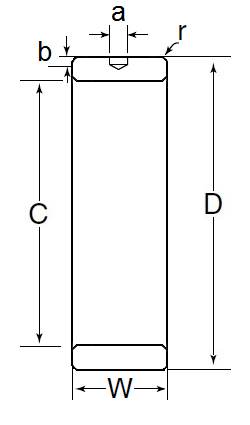

Dimensional Specifications
D
140.000 mm
C
121.360 mm
W
33.000 mm
r
2.030 mm
a
9.520 mm
b
3.560 mm
