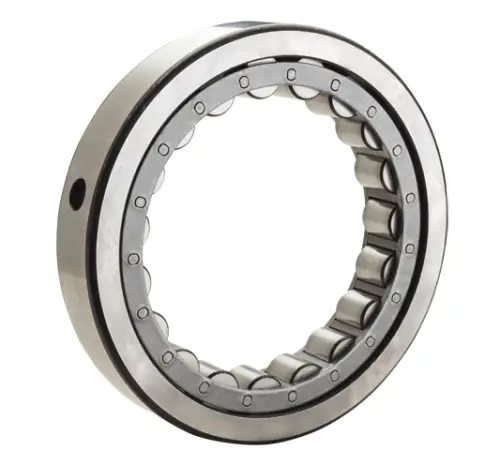

NTN M1318EHX
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
410000 N
Dynamic Load Rating
335000 N
Enclosure
Open
Weight
4.650 kg
Operating Temperature Range
-40 to 120 ºC

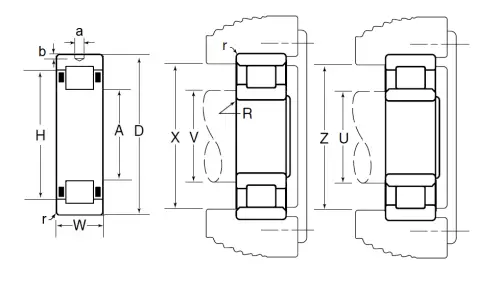

Dimensional Specifications
A
114.020 mm
D
190.000 mm
W
43.000 mm
r
2.540 mm
H
156.160 mm
a
11.130 mm
b
4.570 mm
U (Plain Rings)
108.200 mm
V (Rib Rings)
113.800 mm
X (Plain Rings)
172.700 mm
Z (Rib Rings)
165.400 mm
