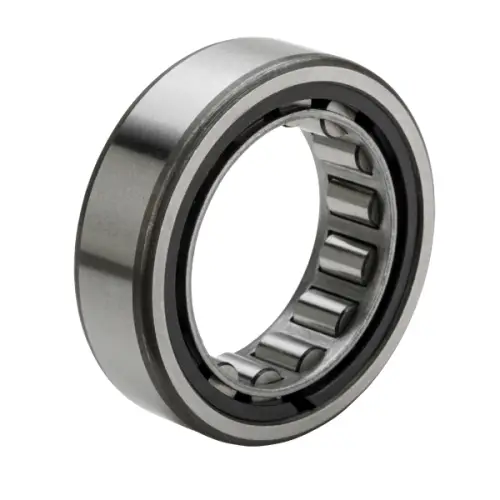

NTN M1924TL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
176000 N
Dynamic Load Rating
111000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

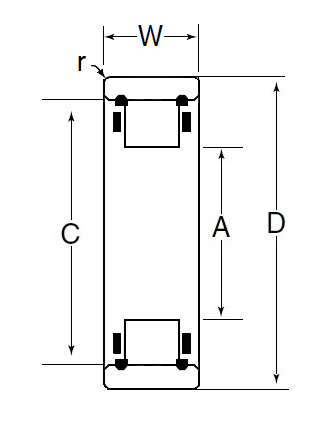

Dimensional Specifications
A
131.500 mm
D
165.000 mm
C
149.500 mm
W
22.000 mm
r
1.020 mm
