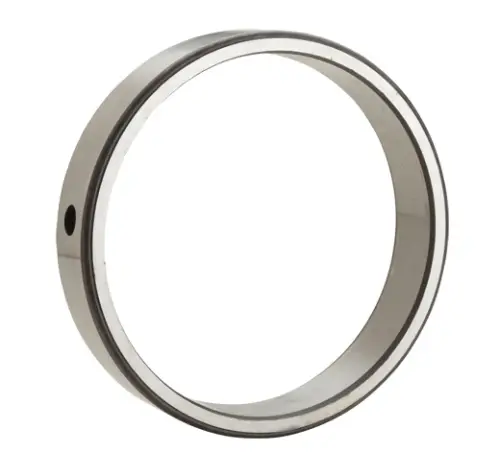

NTN M1956CHE
Outer Ring for Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring
Material
Hardened Alloy Steel
Weight
5.715 kg

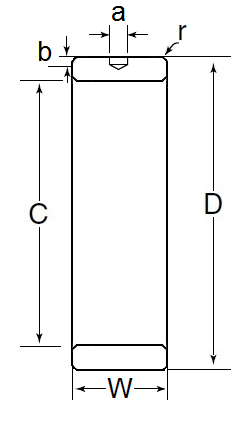

Dimensional Specifications
D
380.000 mm
C
354.840 mm
W
46.000 mm
r
2.030 mm
a
11.130 mm
b
4.570 mm
