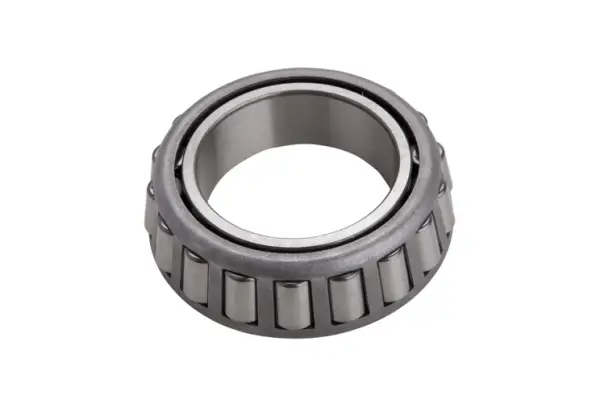

NTN M268749
Cone for Tapered Roller Bearing - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cone
Bore Type
Round
Material
Case Carburized Steel
Static Load Rating
5250000 N
Dynamic Load Rating
2300000 N
Operating Temperature Range
-40 to 120 ºC
Y2 (Axial Load Factor)
1.80
e (Axial Load Factor)
0.33
Dimensional Specifications
B
415.925 mm
Wi
114.300 mm
R
6.400 mm
U
444.0 mm
V
424.0 mm
a (Effective Load Center)
-9.400 mm
