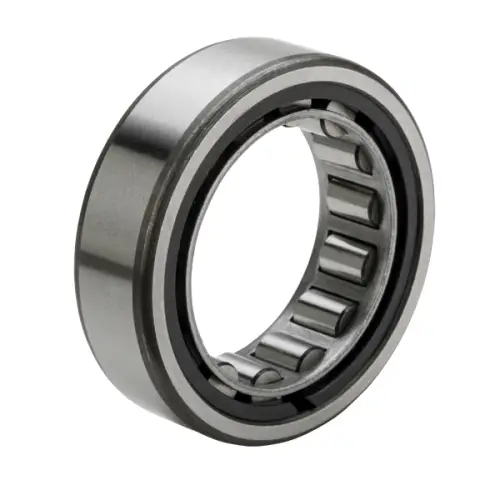

NTN M5204TV
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
39500 N
Dynamic Load Rating
36500 N
Enclosure
Open
Weight
0.121 kg
Operating Temperature Range
-40 to 120 ºC

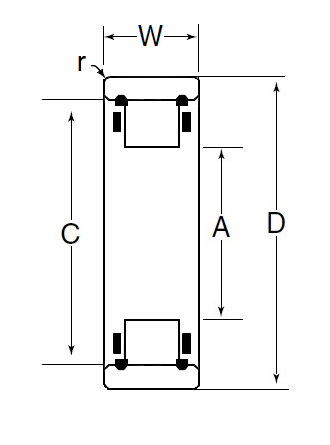

Dimensional Specifications
A
28.140 mm
D
47.000 mm
C
38.680 mm
W
20.638 mm
r
1.020 mm
