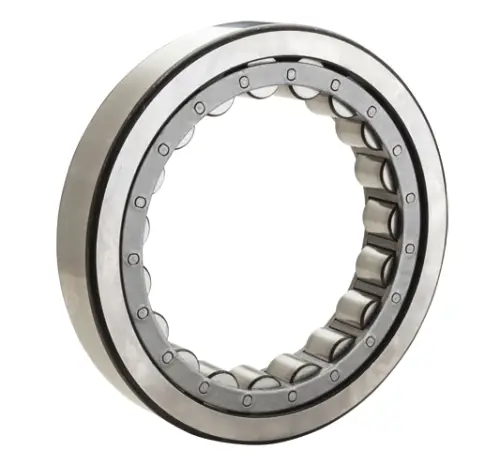

NTN M5211EL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
178000 N
Dynamic Load Rating
127000 N
Enclosure
Open
Weight
0.862 kg
Operating Temperature Range
-40 to 120 ºC

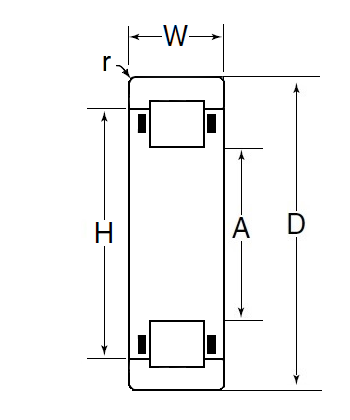

Dimensional Specifications
A
66.900 mm
D
100.000 mm
W
33.338 mm
r
1.520 mm
H
84.530 mm
