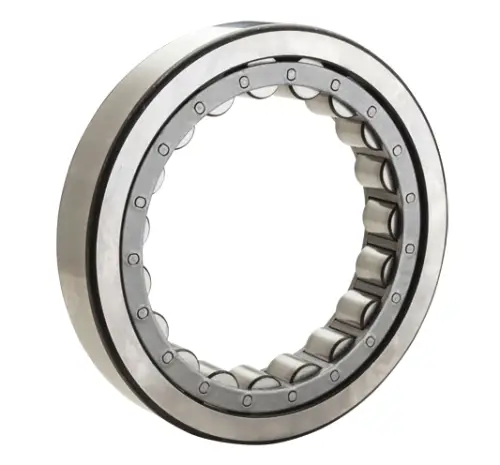

NTN M5217EL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
405000 N
Dynamic Load Rating
272000 N
Enclosure
Open
Weight
2.740 kg
Operating Temperature Range
-40 to 120 ºC

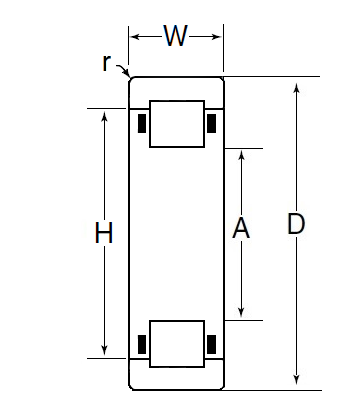

Dimensional Specifications
A
102.010 mm
D
150.000 mm
W
49.212 mm
r
2.030 mm
H
128.420 mm
