NTN M5218EHV

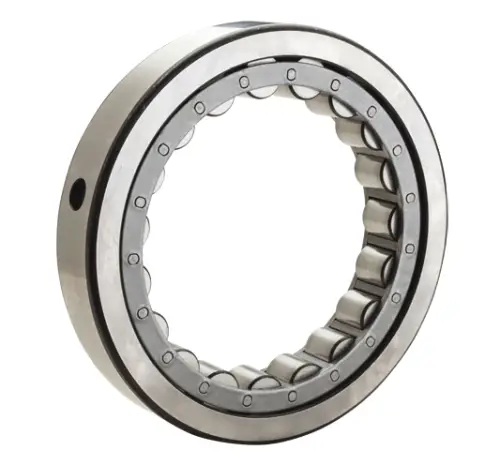

Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
One-Piece Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
480000 N
Dynamic Load Rating
320000 N
Enclosure
Open
Weight
3.311 kg
Operating Temperature Range
-40 to 120 ºC

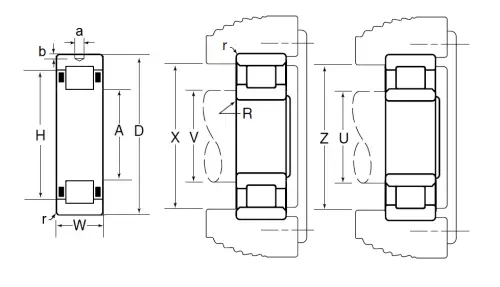

Dimensional Specifications
A
107.210 mm
D
160.000 mm
W
52.388 mm
r
2.030 mm
H
135.890 mm
a
11.130 mm
b
4.570 mm
U (Plain Rings)
103.100 mm
V (Rib Rings)
107.200 mm
X (Plain Rings)
147.600 mm
Z (Rib Rings)
142.000 mm
