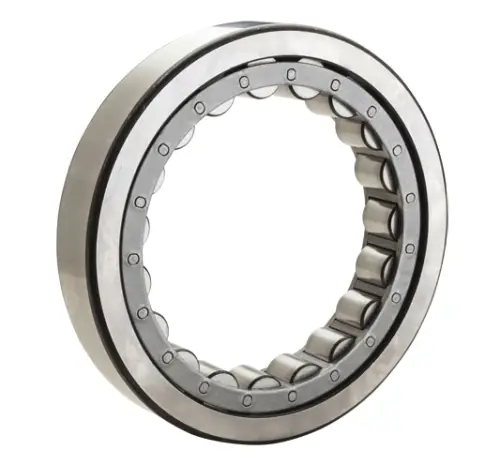

NTN M5226EX
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
1000000 N
Dynamic Load Rating
620000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

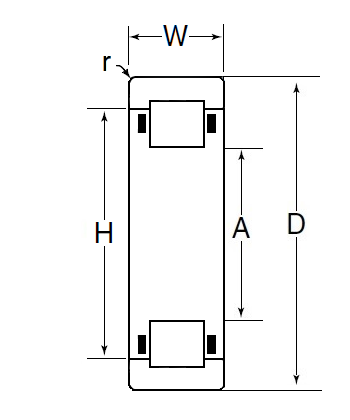

Dimensional Specifications
A
154.970 mm
D
230.000 mm
W
79.375 mm
r
2.540 mm
H
197.130 mm
