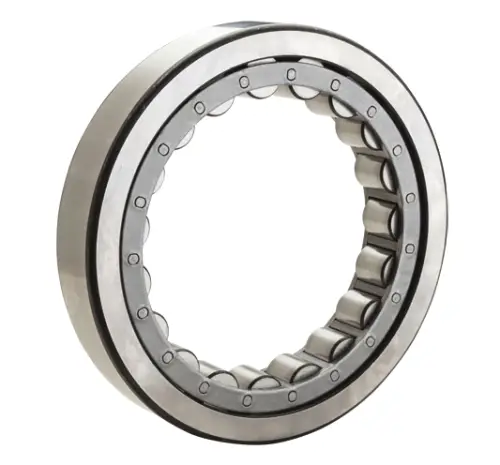

NTN M6207EL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Enclosure
Open
Weight
0.807 kg
Operating Temperature Range
-40 to 120 ºC

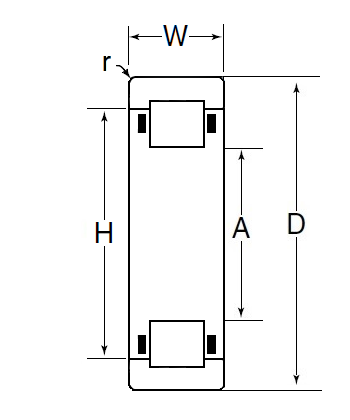

Dimensional Specifications
A
44.000 mm
D
72.000 mm
W
53.975 mm
r
1.010 mm
H
59.055 mm
