NTN M7309EAHL

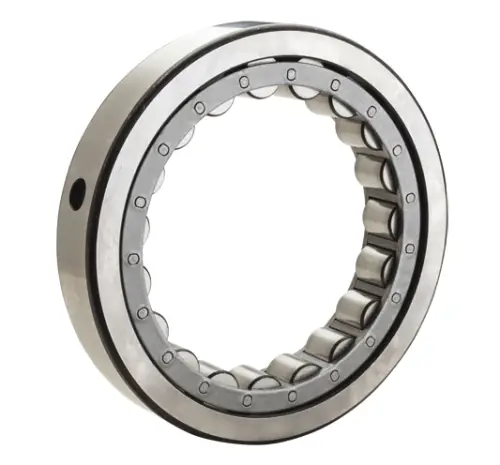

Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
165000 N
Dynamic Load Rating
136000 N
Enclosure
Open
Weight
0.971 kg
Operating Temperature Range
-40 to 120 ºC

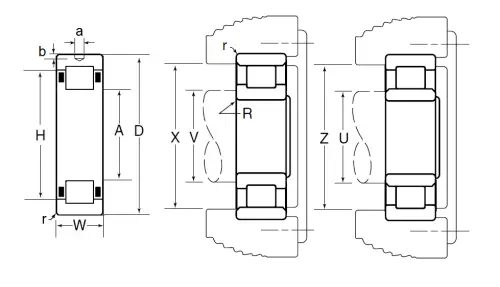

Dimensional Specifications
A
59.360 mm
D
100.046 mm
W
31.000 mm
r
1.520 mm
H
81.480 mm
a
7.920 mm
b
2.790 mm
U (Plain Rings)
55.900 mm
V (Rib Rings)
59.200 mm
X (Plain Rings)
90.400 mm
Z (Rib Rings)
86.100 mm
