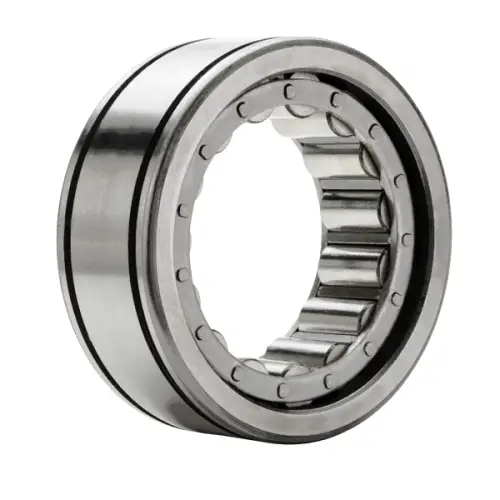

NTN M7309GGEL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
165000 N
Dynamic Load Rating
136000 N
Enclosure
Open
Weight
0.950 kg
Operating Temperature Range
-40 to 120 ºC

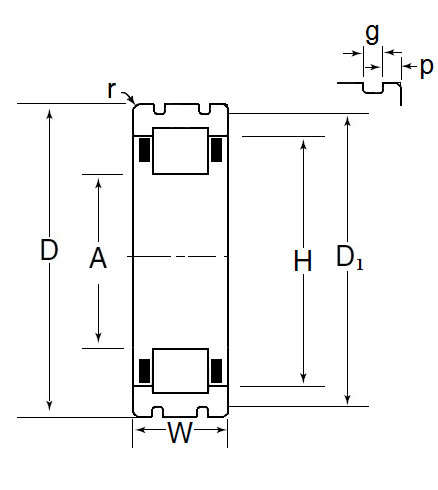

Dimensional Specifications
A
59.360 mm
D
100.000 mm
W
31.000 mm
r
1.520 mm
D1
96.800 mm
p
2.770 mm
g
3.18 mm
H
81.480 mm
