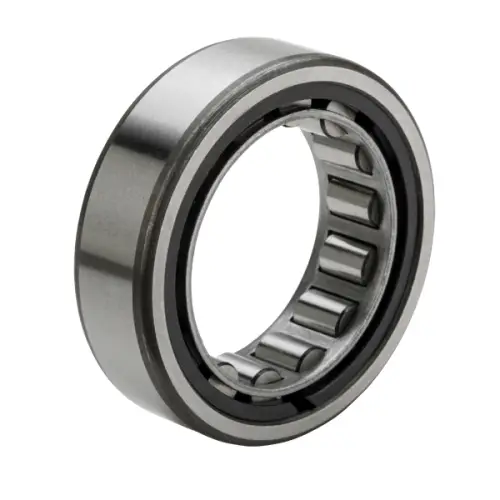

NTN M7318TL
Outer Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Outer Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
505000 N
Dynamic Load Rating
395000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
A
114.020 mm
D
190.000 mm
C
156.160 mm
W
54.000 mm
r
2.540 mm
