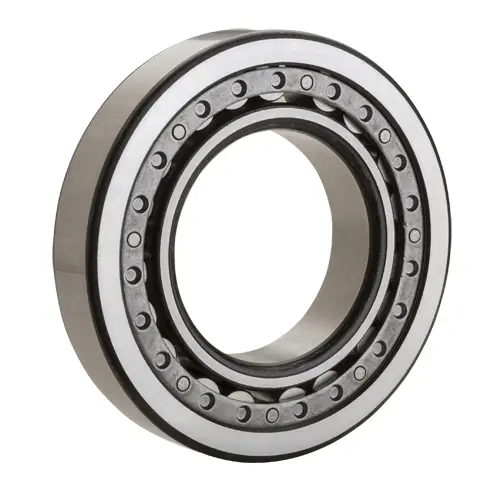

NTN MA5226EX
Single Row Cylindrical Roller Bearings - Separable Type
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Radial Internal Clearance
CN
Static Load Rating
620000 N
Dynamic Load Rating
1000000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

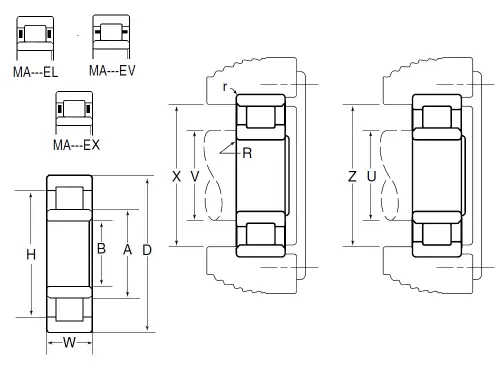

Dimensional Specifications
B
130.000 mm
D
230.000 mm
W
79.375 mm
A
154.970 mm
H
197.130 mm
R
2.540 mm
U (Plain Rings)
149.100 mm
V (Rib Rings)
154.900 mm
X (Plain Rings)
213.900 mm
Z (Rib Rings)
206.200 mm
r
2.540 mm
