NTN ML71906HVDUJ84S
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Precision
ISO Class 4
Configuration
Two
Preload
Medium
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

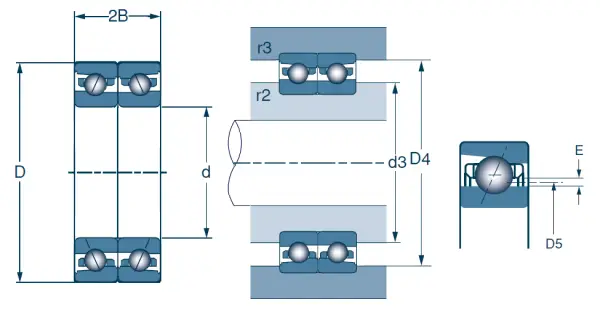

Dimensional Specifications
d
30.000 mm
D
47.000 mm
B
9.000 mm
2B
18.000 mm
r2 max
0.300 mm
r3 max
0.200 mm
Contact Angle
25 º
d2
35.100 mm
d3
34.500 mm
D1
40.700 mm
D4
41.800 mm
D5
36.200 mm
E
1.730 mm
