NTN MLE71905HVDUJ74S
Duplex Machline Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Stratified
Cage Material
Phenolic
Ball Material
Steel
Seal Type
Non-Contact
Seal Material
Nitrile Rubber
Precision
ISO Class 4
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

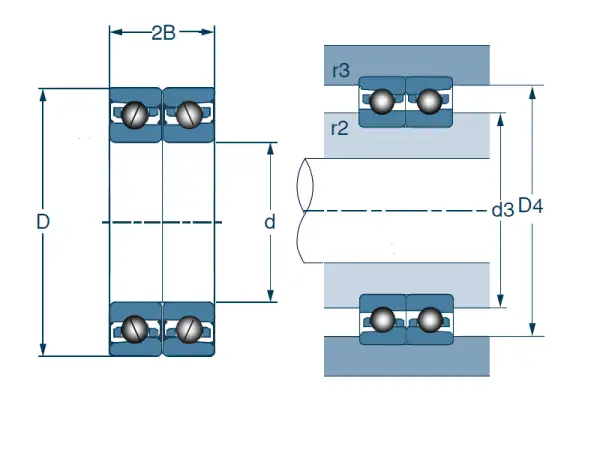

Dimensional Specifications
d
25.000 mm
D
42.000 mm
B
9.000 mm
2B
18.000 mm
r2 max
0.300 mm
r3 max
0.200 mm
Contact Angle
25 º
d2
30.000 mm
d3
30.600 mm
D1
36.200 mm
D4
37.300 mm
