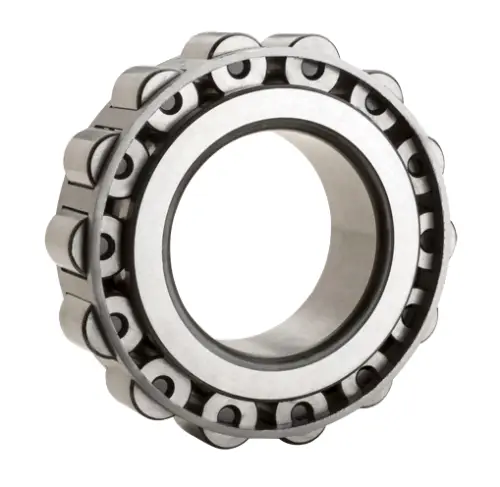

NTN MU1016X
Inner Ring with Cage and Rollers
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Inner Ring w/ Rollers
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
X Bar Composite Steel
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Static Load Rating
133000 N
Dynamic Load Rating
97000 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

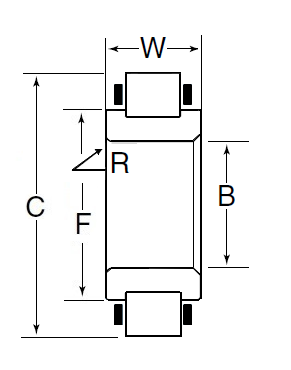

Dimensional Specifications
B
80.000 mm
C
113.130 mm
W
22.000 mm
F
95.780 mm
R
2.030 mm
